Integral Pinion Shaft 500TPD 350TPD Casting Pinion Gears And Mill Pinion Gear Manufaccturer

Name: Integral Pinion Shaft 500TPD 350TPD Casting Pinion Gears And Mill Pinion Gear Manufaccturer
Brand: CITIC LK
Price: 3 USD

China Integral Pinion Shaft 500TPD 350TPD Casting Pinion Gears And Mill Pinion Gear Manufaccturer wholesale

Place of Origin : Henan, China

Brand Name : CITIC LK

Supply Ability : 100000.0 Piece/Pieces per Year

Packaging Details : Standard packing or according to customer's requirement

MOQ : >=1 Sets

Price : $3,000.00

Shape : Spur

Condition : New

Warranty : 1.5 years

Applicable Industries : Manufacturing Plant, Energy & Mining

After Warranty Service : Video technical support, Online support

Local Service Location : Viet Nam, Indonesia, Australia, Argentina

Showroom Location : None

Material : Steel

Product Name : Sell ball mill pinion high quality ball mill

Keyword : ball mill small gear

Pinion Gears : Casting Pinion Gears

Size : Customer's Drawing

Standard : American Standard

Certificate : ISO9001:2015

Application : Transmission Gearbox

Port : QingDao,ShangHai,TianJin

Contact Now

Products Description

Sell ball mill pinion high quality ball mill

Specification	Machining Scope

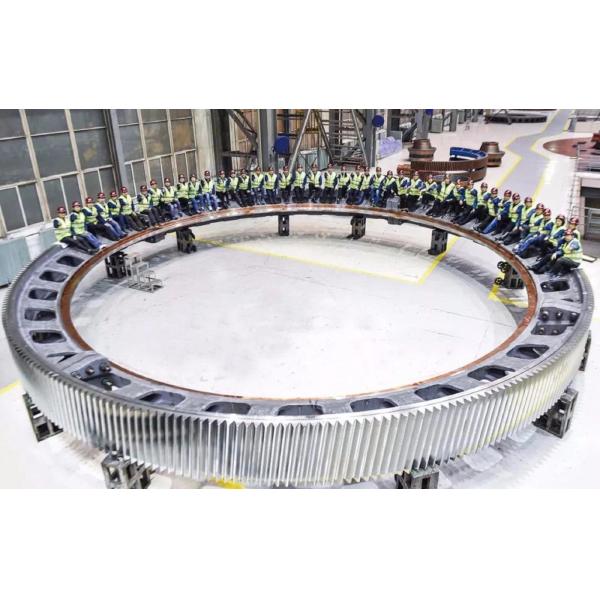

Size	OD Max 16m
	One Piece of Gear: OD Max 13m
	Assemble Gear: According to drawings
Hobbing Modulus	10-60
Milling Modulus	Up to 120
Spiral Modulus	1-15
Accuracy Grade	Milling: 6 grade
Accuracy Grade	Hobbing: 8 grade
Material	Alloy steel: 42CrMo4, 34CrNiMo6 etc.
	Carbon steel: C45E, 1030
	Carburizing steel
	Quenched and tempered steel
Heat treatment	Quenching&Tempering, Surface Quenching

Small pinion gear

Ball mill parts for small gear offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers. Small gear of ball mill modulus: modulus is refers to between two adjacent gears on the same side of the teeth profile of tooth distance t and of PI ratio (M = t / PI), in millimetres. Modulus is one of the most basic parameters for making gears. The greater the modulus, the higher the tooth thickness, the modulus is based on the design, manufacture and inspection requirements of the development of parameters. GB ball mill small gear modulus of not less than 14, commonly used gear modulus has 18 mode, 20 mode, 22 mode, 24 mode, 25 mode, 26 mode, 28 mode, 30 mode, etc.. The number of teeth and the modulus of the gear are set according to the requirements of mechanical and mechanical principles.

Pinion for:
Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD
Integral pinion shaft for cement plant or ball mills
Pinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plant
Main Type of pinion applications as given below for the all above mentioned plants:
Kiln Pinion
Cooler pinion
Pinion shaft
Pinion assembled with shaft, bearings, plummer blocks
Integral pinion shaft upto 3 mtr total lentgh.

Casting Pinion Gears

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates. Q:Delivery time A: parts lead time 1-2months, machines 2-3months. Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply. Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs.

Casting Pinion Gears
